Keyboards Compare keyboard layouts and sizes
Go Up [Go Up]
Print [Print]

Laptop keyboards, while they use the standard QWERTY layout for their alphanumeric keys, have many creative ways of arranging the remaining keys. This page lets you compare keyboard layouts and sizes.

Systems are organized by decreasing alphanumeric key size. Click on each keyboard image to get a larger view; these views also have rough measurements of the keyboard and mouse area. Key pitch and stroke measurements are taken from the manufacturers' literature, when available; they usually apply only to the alphanumeric keys.

Full (100%)

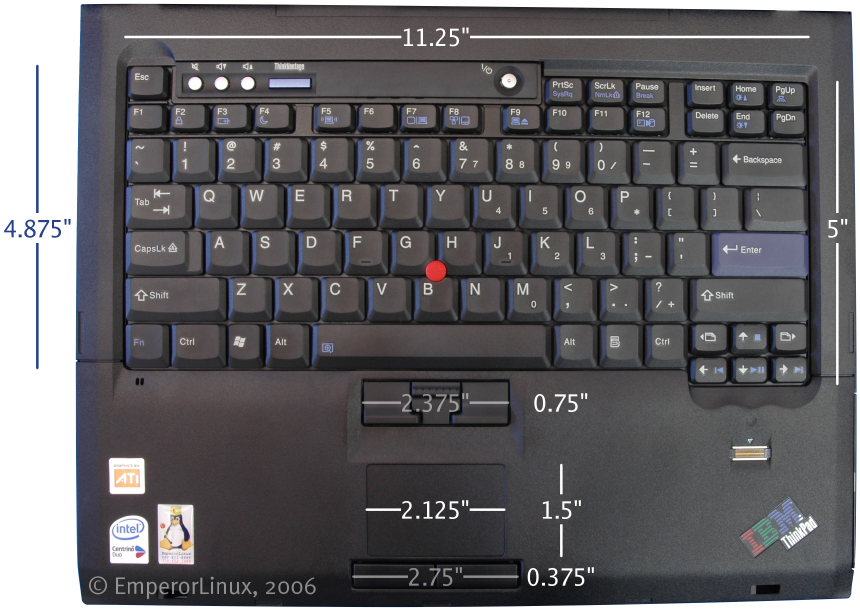

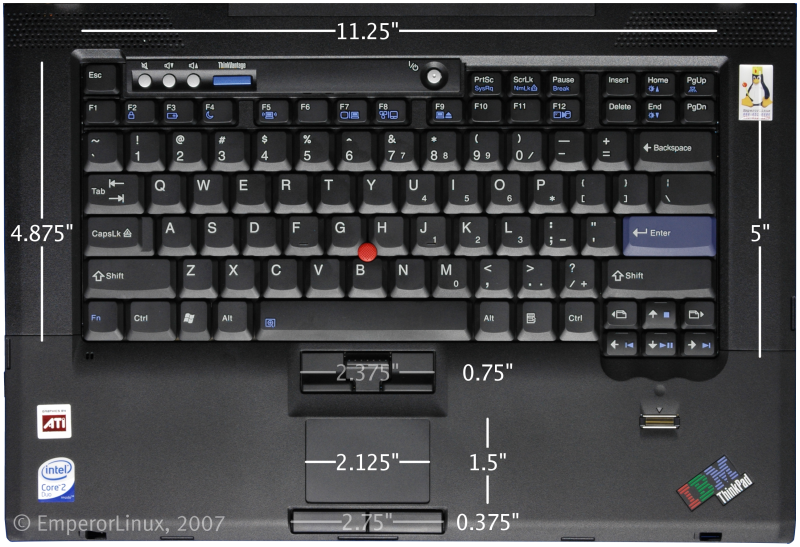

Toucan T60 Toucan T60 Widescreen
[EmperorLinux Toucan T60 Keyboard] [EmperorLinux Toucan T60 Widescreen Keyboard]
19.1mm pitch / 89 key U.S. layout 19.1mm pitch / 89 key U.S. layout

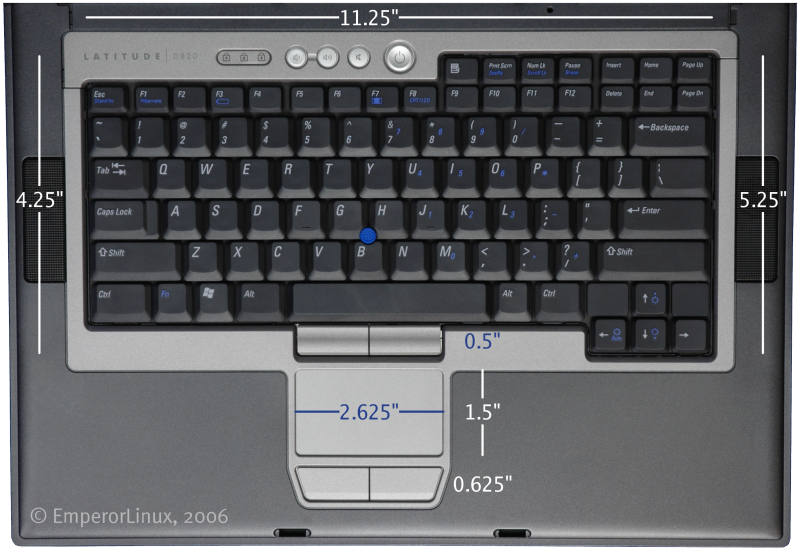

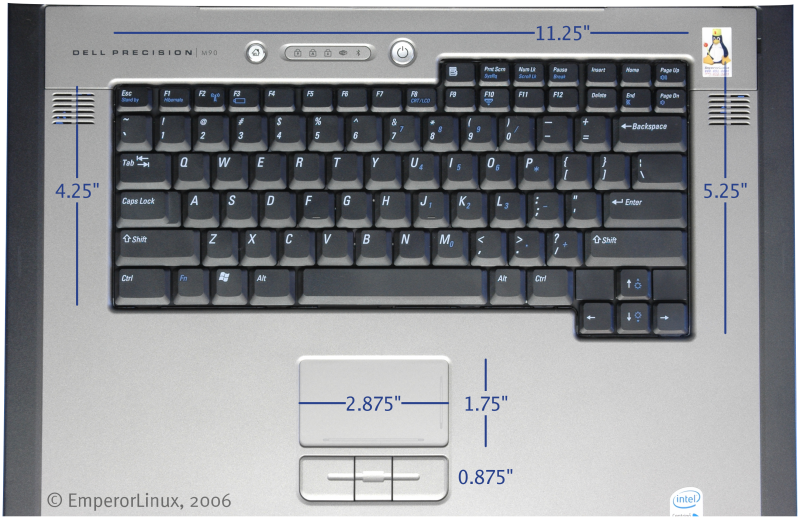

Rhino D820 Rhino M90
[EmperorLinux Rhino D820 Keyboard] [EmperorLinux Rhino M90 Keyboard]
19mm pitch / 87 key U.S. layout 19mm pitch / 87 key U.S. layout

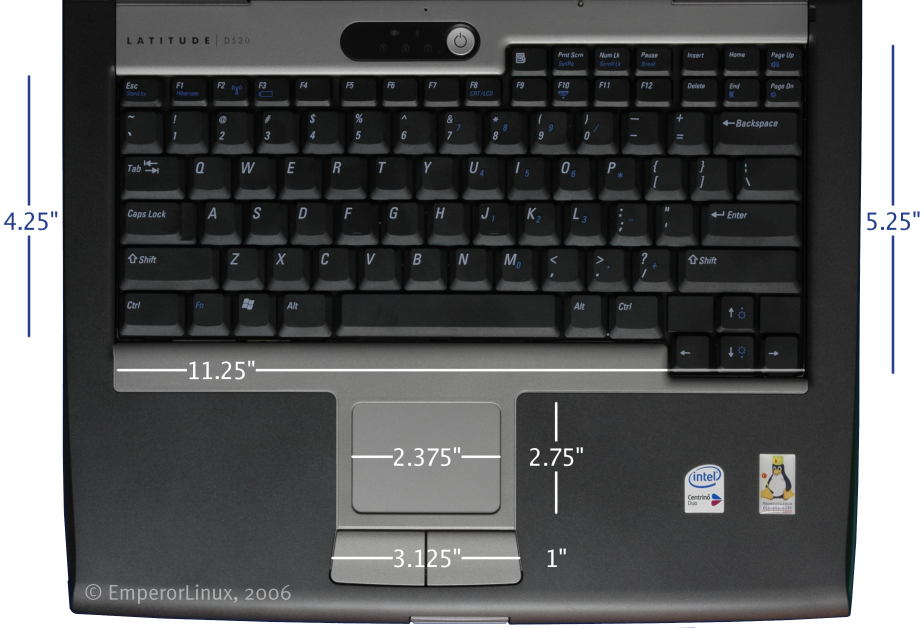

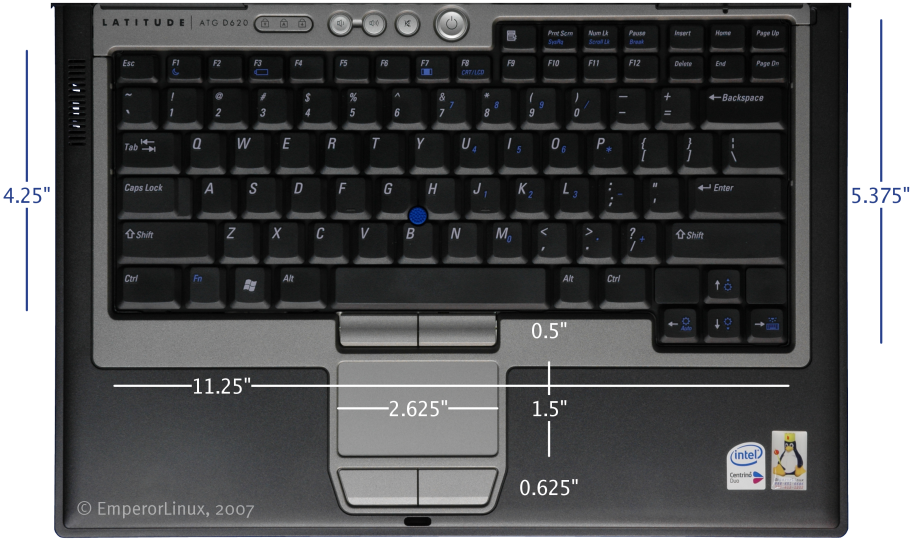

Caiman ATG Tiger D520
[EmperorLinux Caiman ATG Keyboard] [EmperorLinux Tiger D520 Keyboard]
19.05mm pitch / 2.5mm travel / 87 key U.S. layout 19.05mm pitch / 2.5mm travel / 87 key U.S. layout

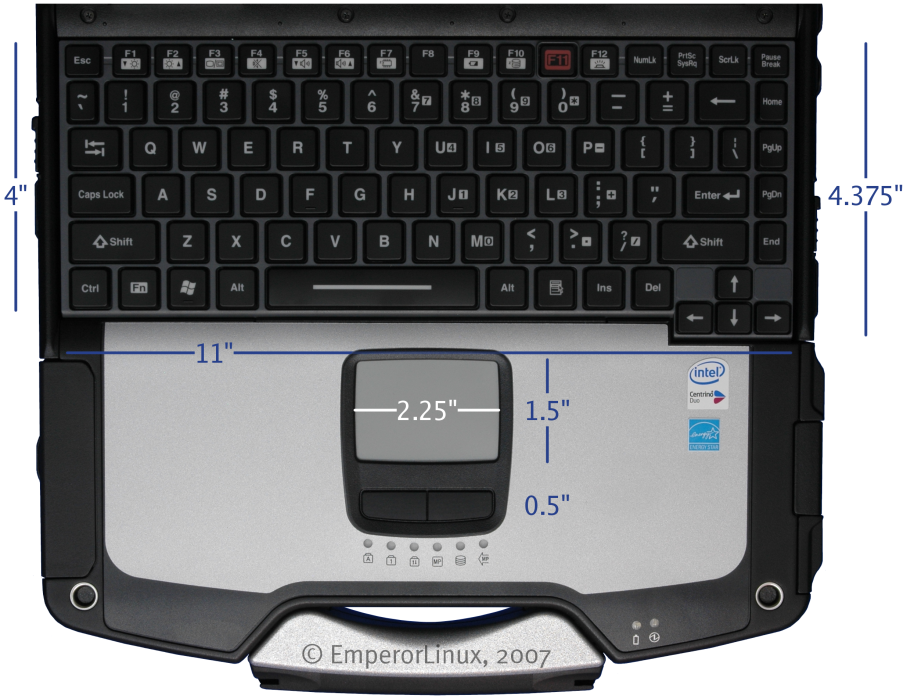

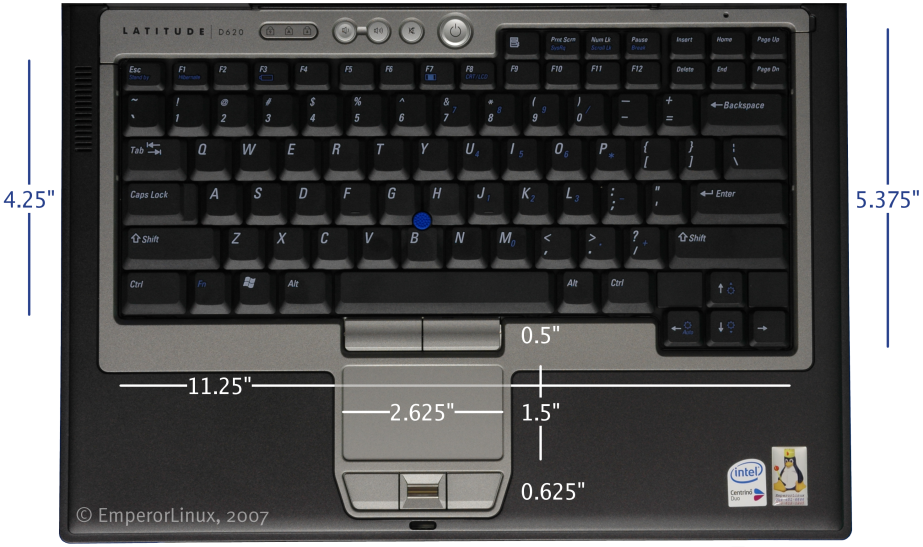

Tiger D620 Tarantula CF-30
[EmperorLinux Tiger D620 Keyboard] [EmperorLinux Tarantula CF-30 Keyboard]
19.05mm pitch / 2.5mm travel / 87 key U.S. layout 19mm key pitch / 87 key U.S. layout
Emissive backlit keyboard

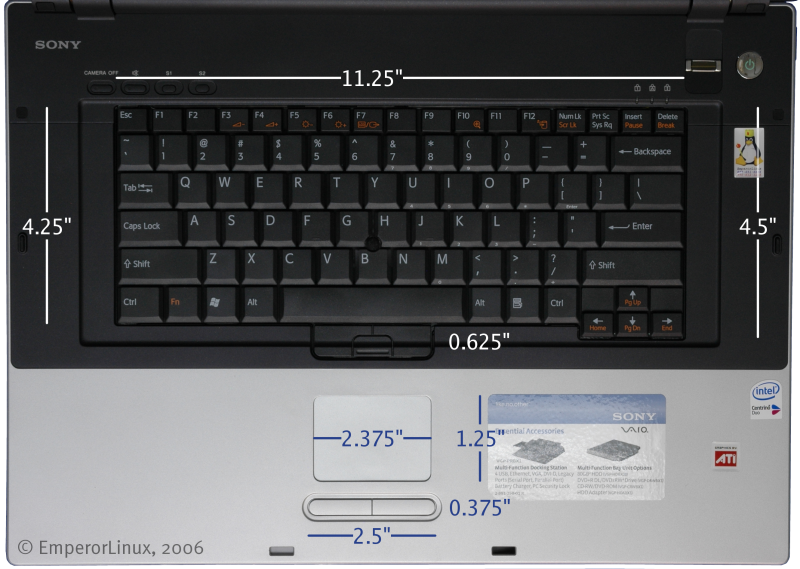

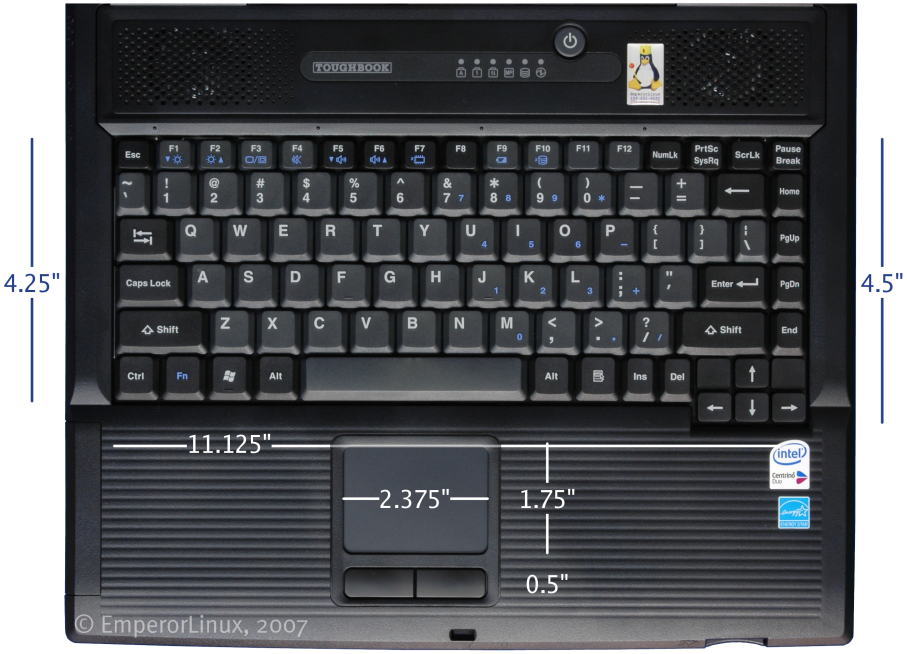

Scarab CF-51 Gazelle BX670
[EmperorLinux Scarab CF-51 Keyboard] [EmperorLinux Gazelle BX670 Keyboard]
19mm key pitch / 87 key U.S. layout 85 keys with 2.5mm stroke and 19.05mm pitch

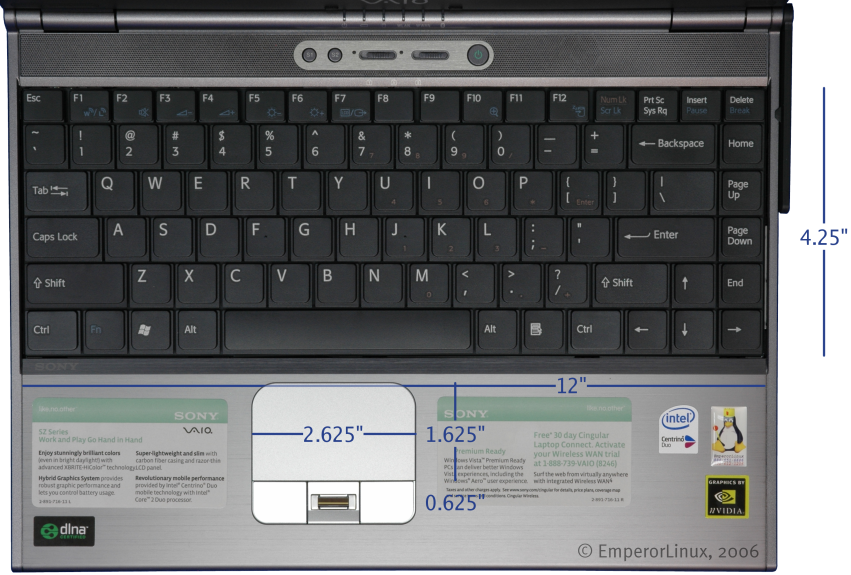

SilverComet SZ3x0
[EmperorLinux SilverComet SZ3x0 Keyboard]
86 keys with 3mm stroke and 19.05mm pitch
95%

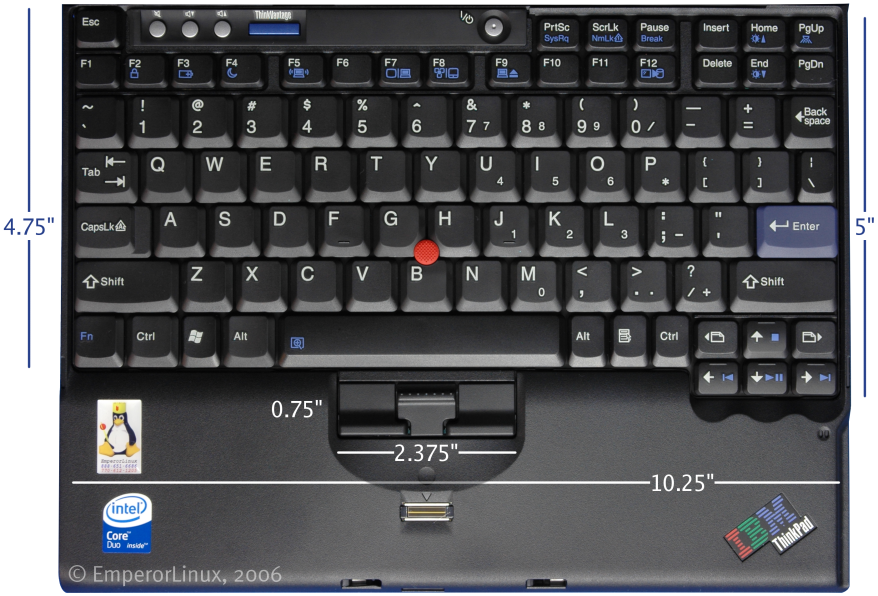

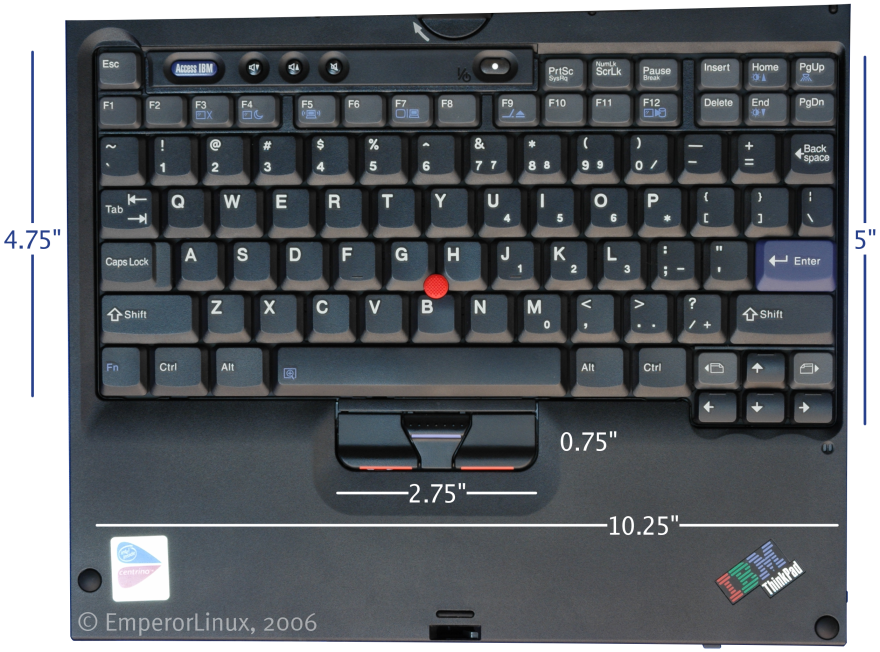

Raven X41 Tablet Raven X60
[EmperorLinux Raven X41 Tablet Keyboard] [EmperorLinux Raven X60 Keyboard]
18.2 mm pitch, 2.5 mm stroke, 87 key U.S. layout (Lenovo defines this as full-sized according to ISO/IEC 15412) 18.5 mm pitch, 2.5 mm stroke, 89 key U.S. layout (Lenovo defines this as full-sized according to ISO/IEC 15412)

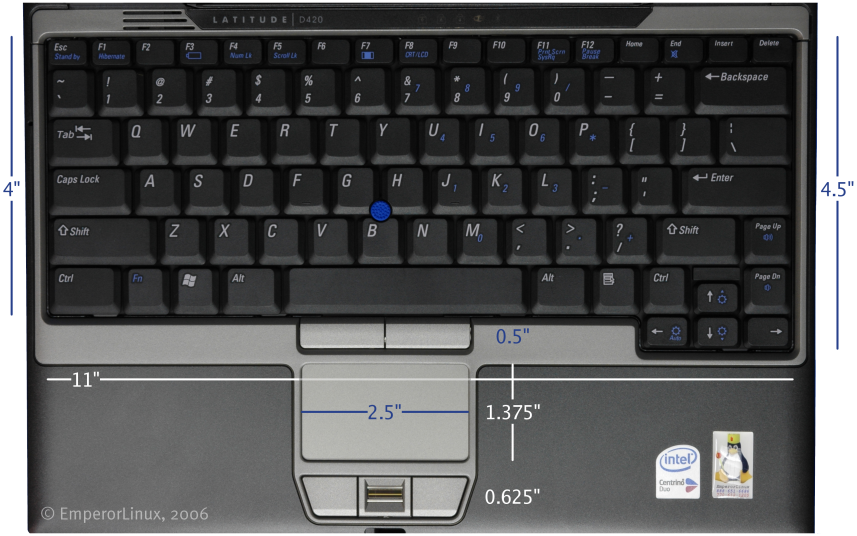

Koala D420
[EmperorLinux Koala D420 Keyboard]
18mm pitch, 2mm stroke, 84 key U.S. layout
90%

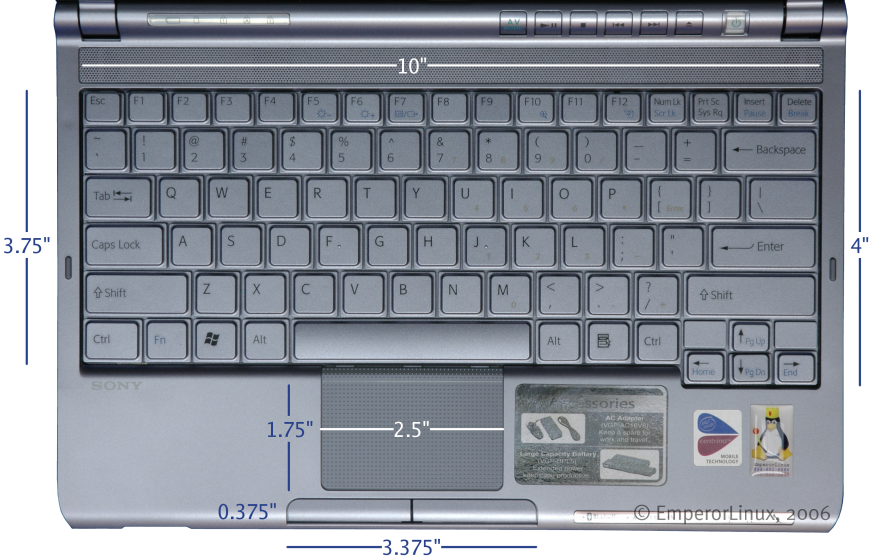

Kiwi TX7x0
[EmperorLinux Kiwi TX7x0 Keyboard]
82 keys with 1.7mm stroke and 17mm pitch
